The levels get high trust in a wide field such as construction and engineering works and DIY.
 |
  |

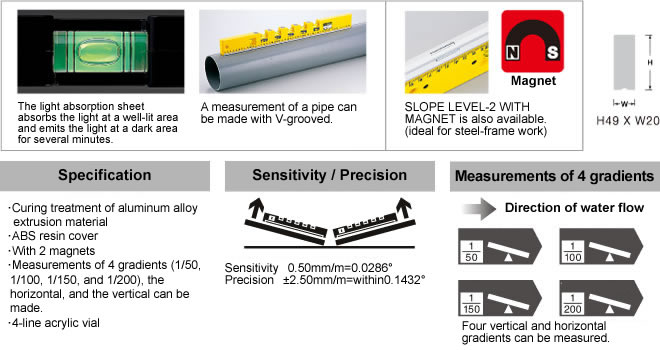

The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.A measurement of a pipe can be made with V-grooved.MagnetSLOPE LEVEL-2 WITH MAGNET is also available. (ideal for steel-frame work)● Curing treatment of aluminum alloy extrusion material● ABS resin cover● With 2 magnets● Measurements of 4 gradients (1/50, 1/100, 1/150, and 1/200), the horizontal, and the vertical can be made.● 4-line acrylic vial/Sensitivity / Precisio/Sensitivity 0.50mm/m=0.0286°Precision ±2.50mm/m=within0.1432°Measurements of 4 gradientsFour vertical and horizontal gradients can be measured.H49 X W20
| Names | Size (mm) | Product mass | Product number | Color | quantity per carton |
|---|---|---|---|---|---|

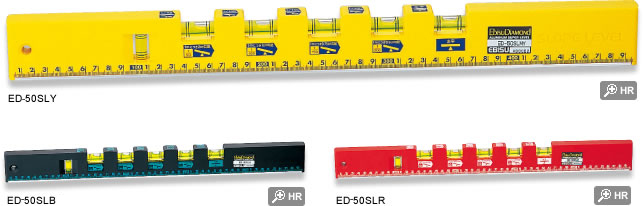

| SLOPE LEVEL-2 | 500 | 331g | ED-50SLB | Black | 1 |
| 331g | ED-50SLR | Red | 1 | ||
| 331g | ED-50SLY | Yellow | 1 | ||
| SLOPE LEVEL-2 WITH MAGNET |
397g | ED-50SLMB | Black | 1 | |
| 397g | ED-50SLMR | Red | 1 | ||
| 397g | ED-50SLMY | Yellow | 1 |
Please request for documents to person who hopes for download of high-resolution imagery. ID is issued.
