PRODUCT CATALOG

Each kind of level

ED-BS BASE LEVEL
About sensitivity and accuracy
Function marking descriptions Light absorption	Lens	3 gradients

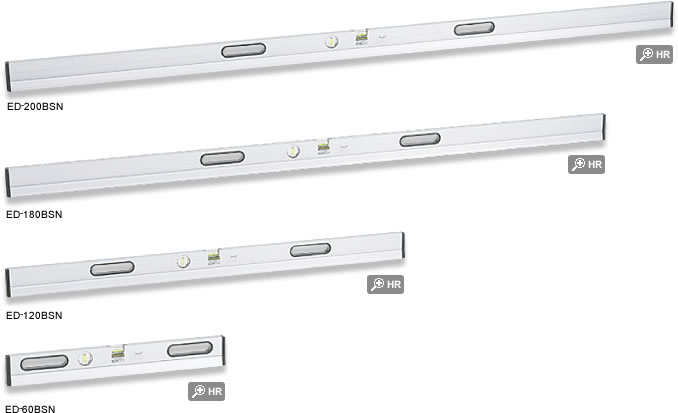

ED-200BSNED-180BSN ED-60BSN ED-120BSN

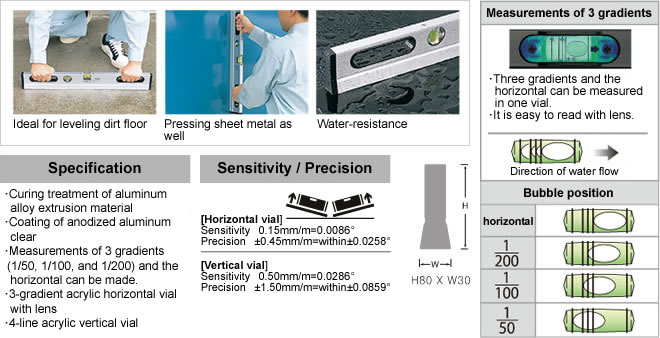

Feature of this product

Ideal for leveling dirt floorPressing sheet metal as wellWater-resistanceThree gradients and the horizontal can be measured in one vial. It is easy to read with lens.● Curing treatment of aluminum alloy extrusion material● Coating of anodized aluminum clear● Measurements of 3 gradients (1/50, 1/100, and 1/200) and the horizontal can be made.● 3-gradient acrylic horizontal vial with lens● 4-line acrylic vertical vial(Horizontal vial)Sensitivity 0.15mm/m=0.0086°Precision ±0.45mm/m=within±0.0258°(Vertical vial)Sensitivity 0.50mm/m=0.0286°Precision ±1.50mm/m=within±0.0859°H80 X W30

Names Size (mm) Product mass Product number Color quantity per carton
BASE LEVEL 600 674g ED-60BSN Silver 1
1200 1,238g ED-120BSN 1
1800 1,844g ED-180BSN 1
2000 2,059g ED-200BSN 1
Please request for documents to person who hopes for download of high-resolution imagery. ID is issued.REQUEST for DOCUMENTS and INQUIRY
