ED-10GHLM G-HANDY LEVEL
About sensitivity and accuracy
Function marking descriptions G-Protector	Light absorption	V-grooved	Tripple-power magnet

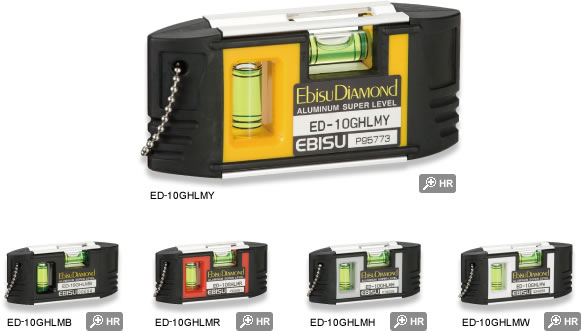

ED-10GHLMY ED-10GHLMB ED-10GHLMRED-10GHLMH ED-10GHLMW

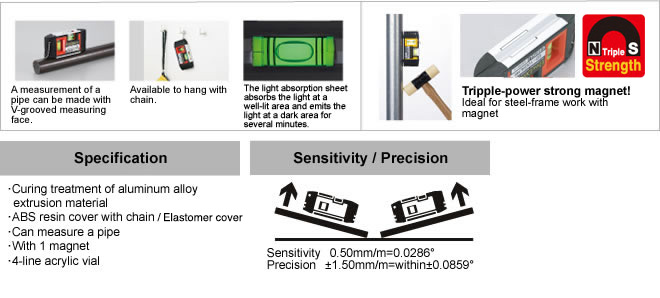

Feature of this product

A measurement of a pipe can be made with V-grooved measuring face.Available to hang with chain.The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.Tripple-power strong magnet!Ideal for steel-frame work with magnet(Neodymium magnet)● Curing treatment of aluminum alloy extrusion material● ABS resin cover with chain● Can measure a pipe● With 1 magnet● 4-line acrylic vialSensitivity 0.50mm/m=0.0286°Precision ±1.5mm/m=within±0.0859°

Names Size (mm) Product mass Product number Color quantity per carton
G-HANDY LEVEL
(WITH MAGNET)
22×46.5×100 92g ED-10GHLMB Black 6
92g ED-10GHLMR Red 6
92g ED-10GHLMY Yellow 6
92g ED-10GHLMH Gray 6
92g ED-10GHLMW White 6
