About sensitivity and accuracy
Function marking descriptions Protector	Light absorption	6-line	Lens	V-grooved

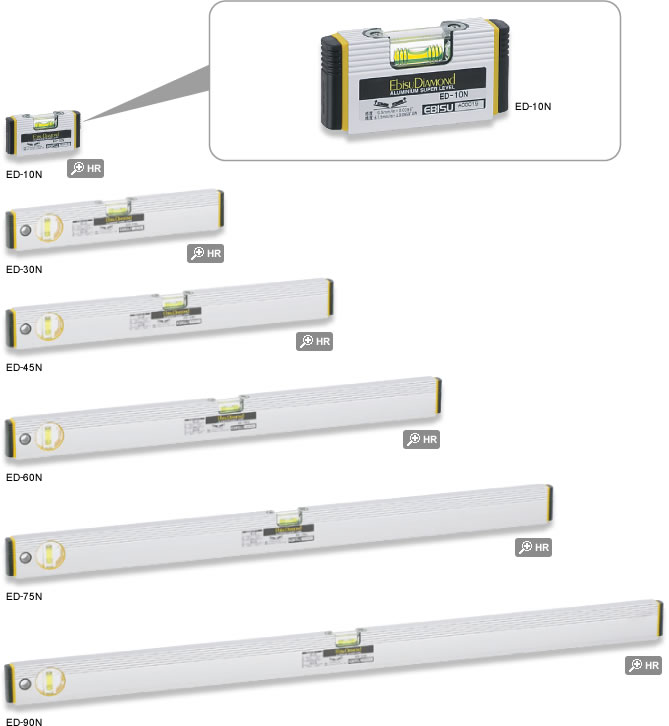

ED-10N ED-30N ED-45NED-60N ED-75NED-90N
Feature of this product

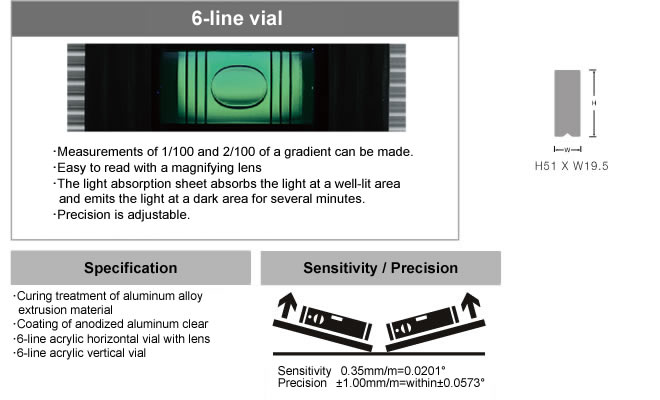

6-line vial● Measurements of 1/100 and 2/100 of a gradient can be made.● Easy to read with a magnifying lens● The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.● Precision is adjustable.● Curing treatment of aluminum alloy extrusion material● Coating anodized aluminum clear and anodized aluminum polyester powder● 6-line acrylic horizontal vial with lens● 6-line acrylic vertical vialSensitivity 0.35mm/m=0.0201°Precision ±1.00mm/m=within±0.0573°H51 X W19.5

Names Size (mm) Product mass Product number Color quantity per carton
BASIC LEVEL 100 80g ED-10N Silver 6
150 122g ED-15N 6
180 140g ED-18N 6
230 165g ED-23N 6
300 200g ED-30N 6
380 242g ED-38N 6
450 277g ED-45N 6
600 352g ED-60N 6
750 431g ED-75N 6
900 505g ED-90N 6
1200 662g ED-120N 1
【Special order】
1050 580g ED-105N Silver 1
1350 744g ED-135N 1
1500 826g ED-150N 1
1800 990g ED-180N 1
2000 1,010g ED-200N 1
2500 1,373g ED-250N 1
3000 1,647g ED-300N 1
3500 1,920g ED-350N 1
