PRODUCT CATALOG

Vial

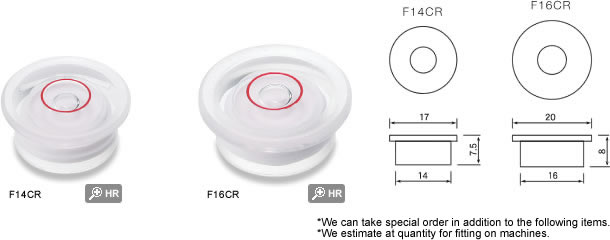

F Acrylic Bull’s-Eye Vial
Function marking descriptions The front, back, left and right
F14CR F16CR
Names Sensitivity Size (mm) Product
mass
Product
number
quantity
per carton
Acrylic Bull’s-Eye Vial20 0.50mm/m=0.0286° φ20×8 2g F16CR 6
Acrylic Bull’s-Eye Vial17 0.35mm/m=0.0201° φ17×7.5 2g F14CR 6

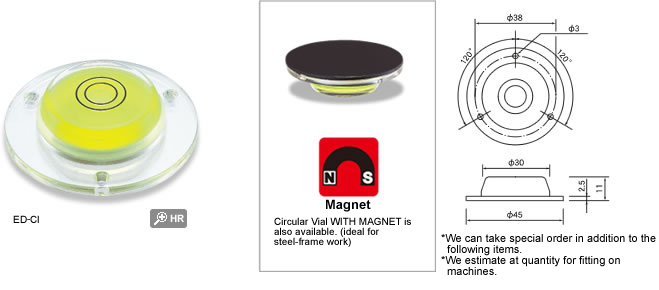

CI Circular Vial
Function marking descriptions The front, back, left and right		Magnet
ED-CI
Names Sensitivity Size (mm) Product
mass
Product
number
quantity
per carton
Circular Vial 0.50mm/m=0.0286° φ45×11 10g CI 6
Circular Vial With magnet 0.50mm/m=0.0286° φ45×12.2 16g CIM 6

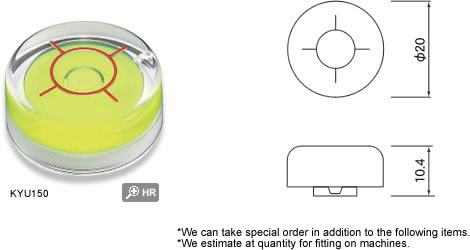

KYU150 Acrylic Bull’s-Eye Level
Function marking descriptions The front, back, left and right
KYU150
Names Sensitivity Size (mm) Product
mass
Product
number
quantity
per carton
Acrylic Bull’s-Eye Level KYU150 0.50mm/m=0.0286° φ20×10.4 3g KYU150 6

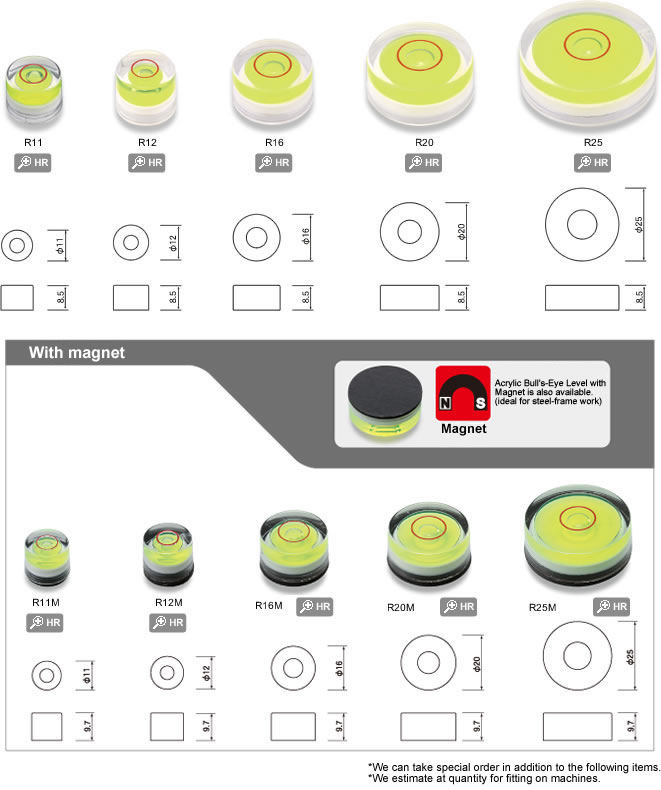

R Acrylic Bull’s-Eye Level	with Magnet
Function marking descriptions The front, back, left and right		Magnet

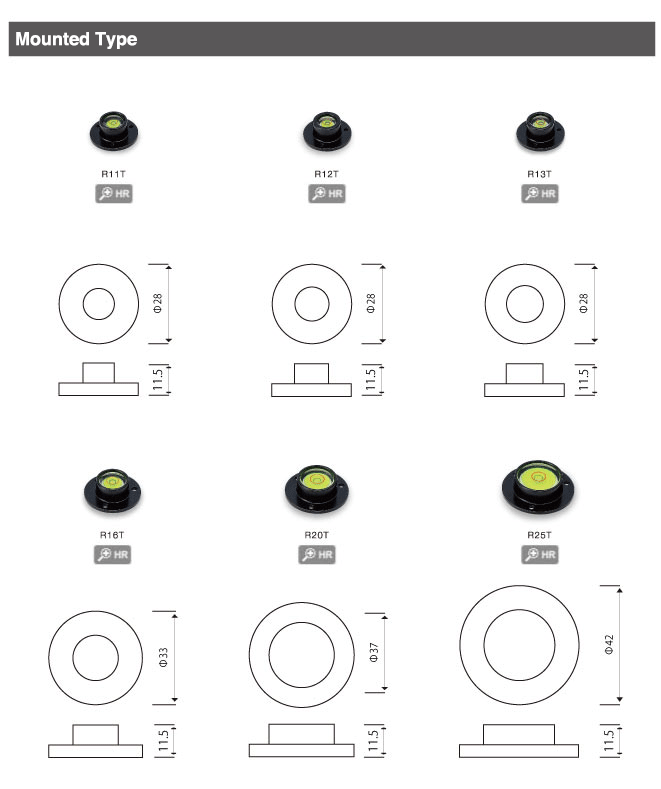

R11 R12 R16 R20 R25 R11M R12M R16M R20M R25M pp13-2.gif R11T R12T R13T R16T R20T R25T
Size (mm) R11T R12T R13T R16T R20T R25T
External Form A 28 28 28 33 37 42
Hole Pitch
Circle Diameter
B 22 22 22 26 30 35
Vertical Wall Diameter C 16 16 16 19 23 28
Spirit Level
External Diameter
D 11 12 13 16 20 25
Hole Diameter E 2 2 2 3 3 3
Names Sensitivity Size (mm) Product
mass
Product
number
quantity
per carton
Acrylic Bull’s-Eye Level φ11 0.50mm/m=0.0286° φ11×8.5 1g R11 6
Acrylic Bull’s-Eye Level φ12 φ12×8.5 1g R12 6
Acrylic Bull’s-Eye Level φ16 φ16×8.5 2g R16 6
Acrylic Bull’s-Eye Level φ20 φ20×8.5 3g R20 6
Acrylic Bull’s-Eye Level φ25 φ25×8.5 4g R25 6
Acrylic Bull’s-Eye Leve l φ11 with Magnet φ11×9.7 1g R11M 6
Acrylic Bull’s-Eye Level φ12 with Magnet φ12×9.7 1g R12M 6
Acrylic Bull’s-Eye Level φ16 with Magnet φ16×9.7 2g R16M 6
Acrylic Bull’s-Eye Level φ20 with Magnet φ20×9.7 4g R20M 6
Acrylic Bull’s-Eye Level φ25 with Magnet φ25×9.7 6g R25M 6
