Angle Measureing Levels

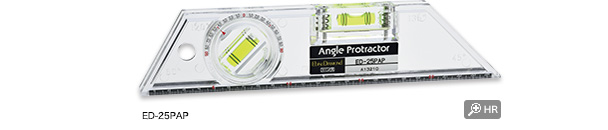

ED-25PAP ANGLE PROTRACTOR
Function marking descriptions Light absorption	Lens	scale	Magnet
ED-25PAPW ED-25PAPY
Feature of this product

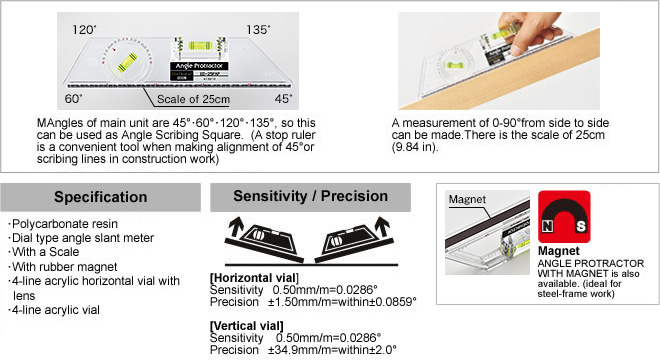

Angles of main unit are 45°・60°・120°・135°, so this can be used as Angle Scribing Square. (A stop ruler is a convenient tool when making alignment of 45°or scribing lines in construction work)A measurement of 0-90°from side to side can be made.There is the scale of 25cm (9.84 in).● Polycarbonate resin ● Dial type angle slant meter● With a Scale ● With rubber magnet● 4-line acrylic horizontal vial with lens● 4-line acrylic vial(Horizontal vial)Sensitivity 0.50mm/m=0.0286°Precision ±1.5mm/m=within±0.0859°(Vertical vial)Sensitivity 0.50mm/m=0.0286°Precision ±34.9mm/m=within±2.0°

About sensitivity and accuracy
Names Size (mm) Product mass Product number Color quantity per carton
ANGLE PROTRACTOR 20×40×250 150g ED-25PAPW White 6
150g ED-25PAPY Yellow 6
