G-LEVEL for Civil Engineering

ED-GA G-LEVEL WITH ANGLE SCALE for Civil Engineering
About sensitivity and accuracy
Function marking descriptions G-Protector	Light absorption	6-line	Lens	V-grooved	Mirror	Angle scale
Feature of this product

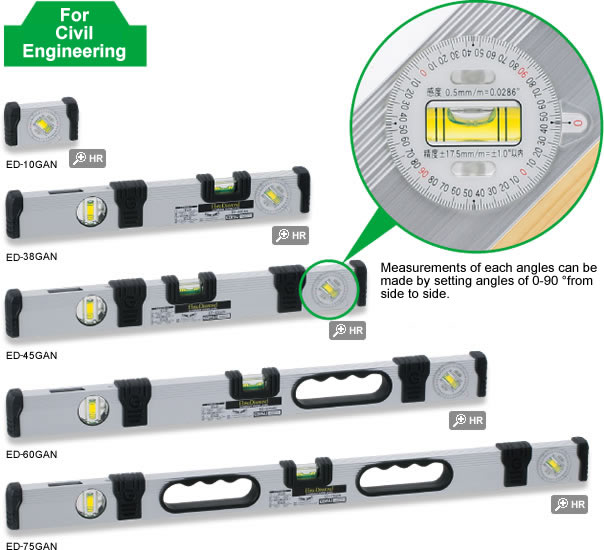

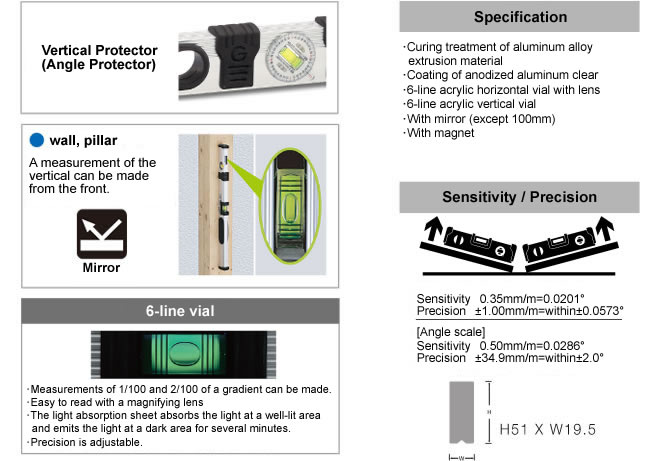

Measurements of each angles can be made by setting angles of 0-90 °from side to side.wall, pillarA measurement of the vertical can be made from the frontmirror6-line vial● Measurements of 1/100 and 2/100 of a gradient can be made.● Easy to read with a magnifying lens● The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.● Precision is adjustable.● Curing treatment of aluminum alloy extrusion material● Coating of anodized aluminum clear● 6-line acrylic horizontal vial with lens● 6-line acrylic vertical vial● With mirror (except 100mm)● With angle scaleSensitivity 0.35mm/m=0.0201°Precision ±1.00mm/m=within±0.0573°[Angle scale]Sensitivity 0.50mm/m=0.0286°Precision ±34.9mm/m=within±2.0°H51 X W19.5

Names Size (mm) Product mass Product number Color quantity per carton
G-LEVEL WITH ANGLE SCALE for Civil Engineering 100 88g ED-10GAN Silver 6
380 307g ED-38GAN 6
450 362g ED-45GAN 6
600 427g ED-60GAN 6
【Special order】
G-LEVEL WITH ANGLE SCALE for Civil Engineering
750 491g ED-75GAN 6
900 573g ED-90GAN 6
1200 737g ED-120GAN 1
Please request for documents to person who hopes for download of high-resolution imagery. ID is issued.REQUEST for DOCUMENTS and INQUIRY
