About sensitivity and accuracy
Function marking descriptions Protector	Light absorption	6-line	Lens	V-grooved
ED-23YED-30Y ED-38Y ED-45Y ED-60YED-75Y ED-90Y ED-120Y
Feature of this product

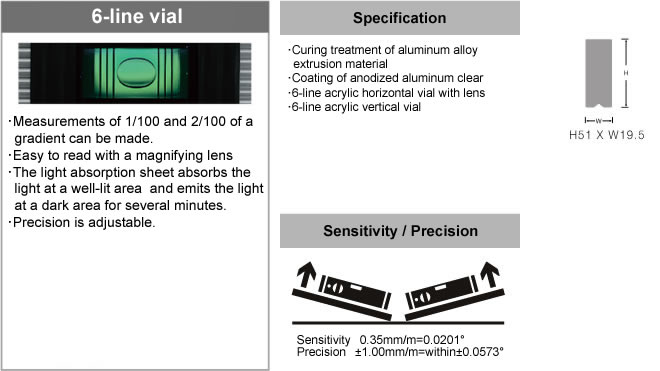

6-line vial● Measurements of 1/100 and 2/100 of a gradient can be made.● Easy to read with a magnifying lens● The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.● Precision is adjustable.● Curing treatment of aluminum alloy extrusion material● Coating anodized aluminum clear and anodized aluminum polyester powder● 6-line acrylic horizontal vial with lens● 6-line acrylic vertical vialSensitivity 0.35mm/m=0.0201°Precision ±1.00mm/m=within±0.0573°H51 X W19.5

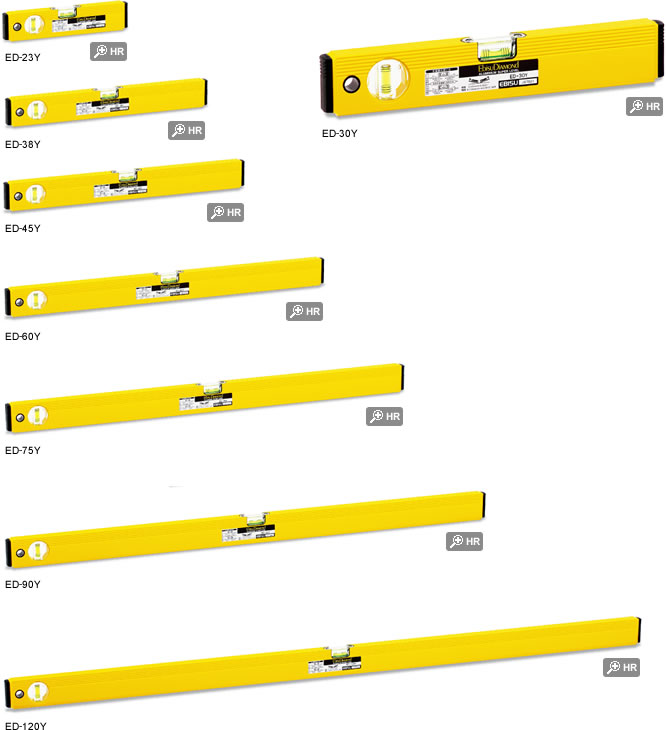

Names Size (mm) Product mass Product number Color quantity per carton
BASIC LEVEL 230 165g ED-23Y Yellow 6
300 200g ED-30Y 6
380 242g ED-38Y 6
450 277g ED-45Y 6
600 352g ED-60Y 6
750 431g ED-75Y 6
900 505g ED-90Y 6
1200 662g ED-120Y 1
