DIGITAL FAULT CHECK LEVEL｜The level corresponds with Building Regulations of Japan｜PRODUCT CATALOG

Protector Light absorption 6-line Lens Mirror

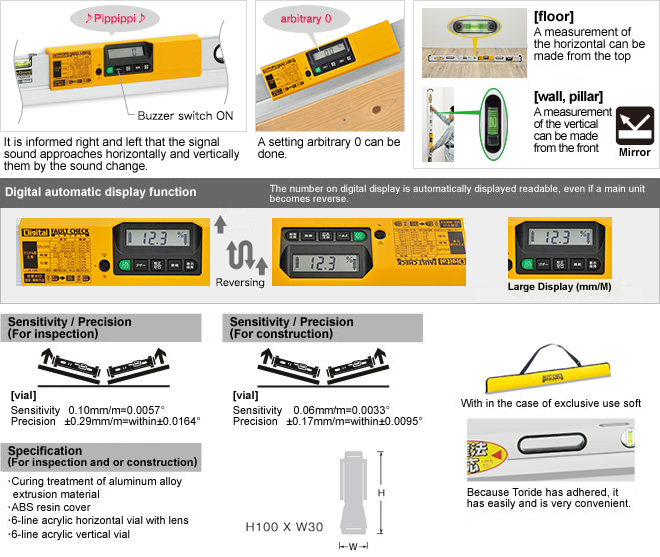

It is informed right and left that the signal sound approaches horizontally and vertically them by the sound change.■floor：A measurement of the horizontal can be made from the top■wall, pillar：A measurement of the vertical can be made from the frontDigital automatic display function●The number on digital display is automatically displayed readable, even if a main unit becomes reverse.

Specifications of Digital Part
Digital Part	Under 100mm	Sensitivity 0.5mm/M=0.0286°(10 seconds) Precision ±1mm/M=within ±0.0573°
Digital Part	Over 100mm	Sensitivity 0.5mm/M=0.0286°(10 seconds) Precision ±2mm/M=within ±0.1146°
Minimum unit displayed	1mm/M	0.05°	0.1％
Indicated Stability Time	10 seconds
Battery for use	S-006P
Temperature for use	－5-50℃
time until indicator becomes stable. A reading by a digital might be different by a reading from a vial. (A vial is more accurate.)

Names	Size (mm)	Product mass	Product number	Color	quantity per carton

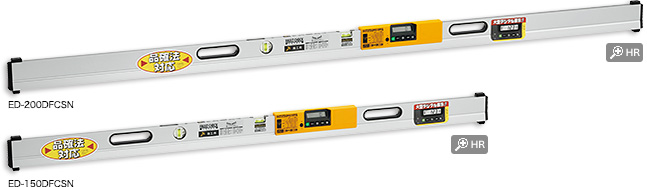

DIGITAL FAULT CHECK LEVEL (For inspection)ED-DFCKN	1500	1,825g	ED-150DFCKN	Silver	1
DIGITAL FAULT CHECK LEVEL (For inspection)ED-DFCKN	2000	2,353g	ED-200DFCKN
DIGITAL FAULT CHECK LEVEL (For construction)ED-FCSN	1500	1,825g	ED-150DFCSN
DIGITAL FAULT CHECK LEVEL (For construction)ED-FCSN	2000	2,353g	ED-200DFCSN

Please request for documents to person who hopes for download of high-resolution imagery. ID is issued.

The levels get high trust in a wide field such as construction and engineering works and DIY.
